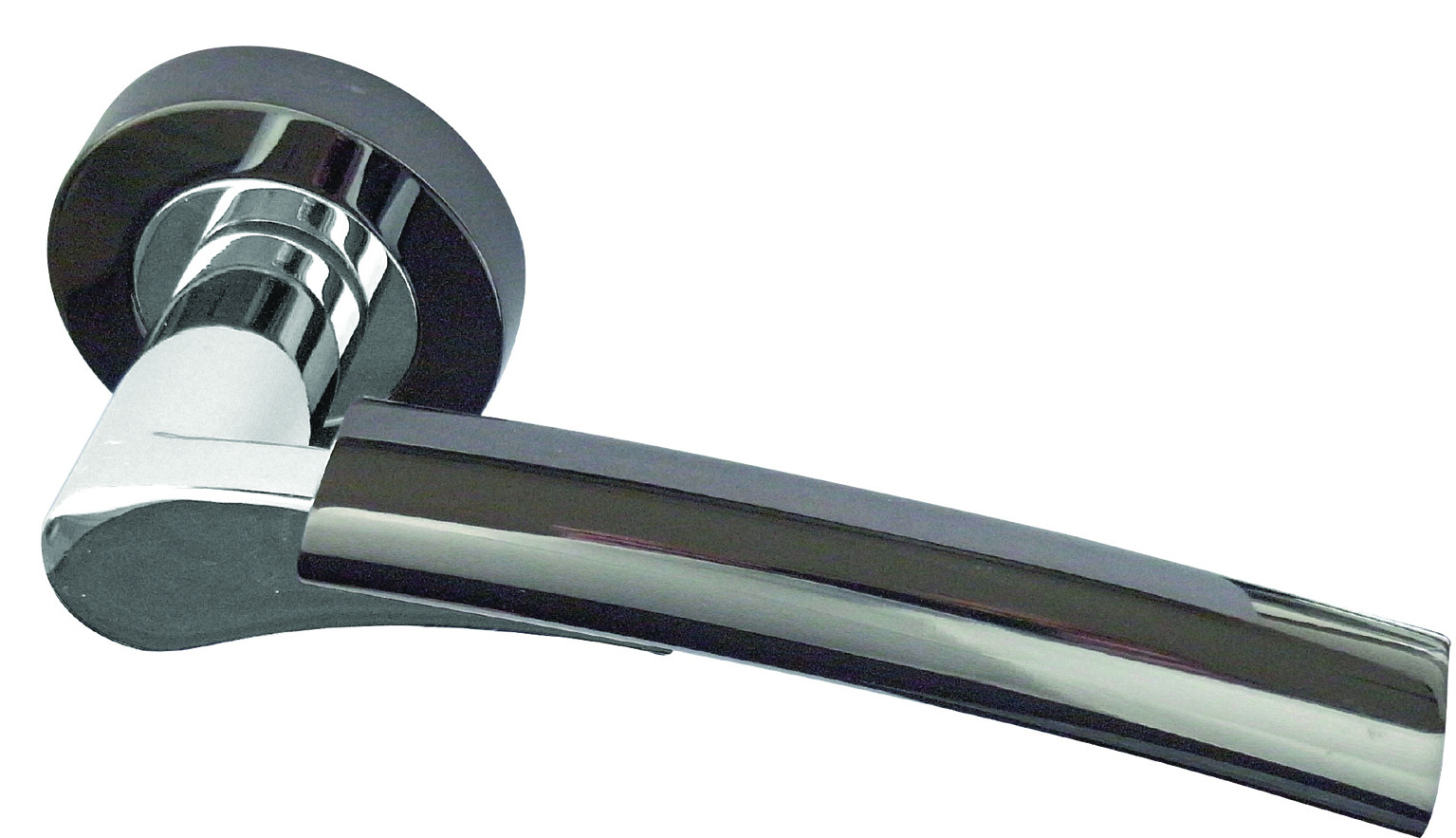

Arkus Designer Lever on Rose Jedo Door Handle - Polished Chrome/ Polished Black Nickel-JV760PCBN

Details

Arkus designer lever on rose door handle with bolt through fixings concealed under screw on rose and secured with grub screw fixings into splined spindle.

Mfr/Brand: Frelan Jedo

Material: Zinc Alloy

Available Finishes

JV760PCSC - Dual Finish = Polished Chrome/Satin Chrome

JV760PCBN - Dual Finish = Polished Chrome/ Polished Black Nickel

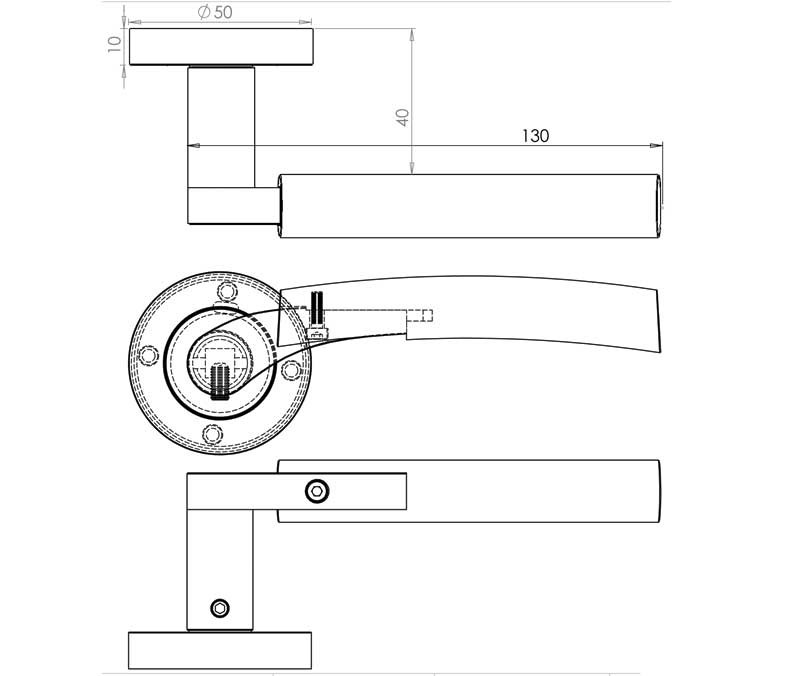

Dimensions

Rose Diameter: 50mm

Rose Projection: 10mm

Overall Projection: 55mm

Handle Length: 130mm

British & European Standard to BS EN 1906

Supplied in pairs complete with 7.9mm spindle & fixings.

Additional Information

Door Lever Handle Options No
Locks & Latches

Standard size is a 2.5 inch / 63mm latch or lock or a 3 inch / 75mm latch or lock should be fine.


The length of the Lock and Latch determines the Backset which is the distance from the edge of the door to the centre of the Backplate on the door handle where the spindle/bar passes through the door.


The Backseton a Standard 63mm Latch or Sash Lock is approx.45mm and on a 75mm latch or lock is approx.57mm.

Handle Type No
Material Zinc Alloy
Brand Frelan Jedo
Finish Polished Chrome/ Polished Black Nickel

Be the first to review this product

Availability: In stock

  1. EX VAT
  2. INC VAT
£11.75 EX VAT
EX VAT: £11.75 £11.75 INC VAT:
